Need Help with a Storyline Drag-and-Drop Activity

I bet AndrewBlemings-​ JudyNollet​ JeffRobedee​ or DianeBullock-32​ has some best practices for this!

There are definitely some simple solutions, though due to the number of objects and slides, it wouldn't be fast.

If it were me, I'd create a true/false variable for each draggable topping called something memorable like mushroomCorrectA, mushroomCorrectC, etc. They can be false by default, and then each draggable has a trigger that sets the value of its relevant variable to true when the state of the object is Drop Correct.

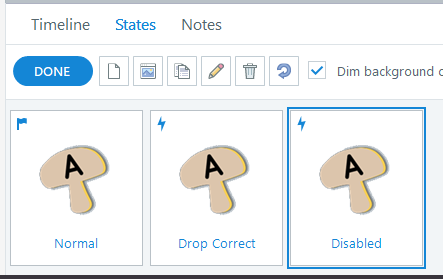

Drop Correct is a default state each draggable object can have, often used to change the appearance of the draggable once its dropped on a correct target. Your toppings don't currently show that state, but it will be listed in the dropdown of the object's Add State dialog. When a topping is dropped on a correct target, the object will then automatically change to that state, though the learner won't know if the states appear identically.

That state change can still be used to trigger that variable flip. Then, a second trigger can change the state of the object from Drop Correct to Disabled when that variable changes, locking the learner from interacting with it any longer.

So:

1. Learner releases an object over the correct target.
2. Storyline changes the state of the object to Drop Correct.
3. That triggers a variable to flip to true.
4. The variable changing to true triggers the state of the object to become Disabled.

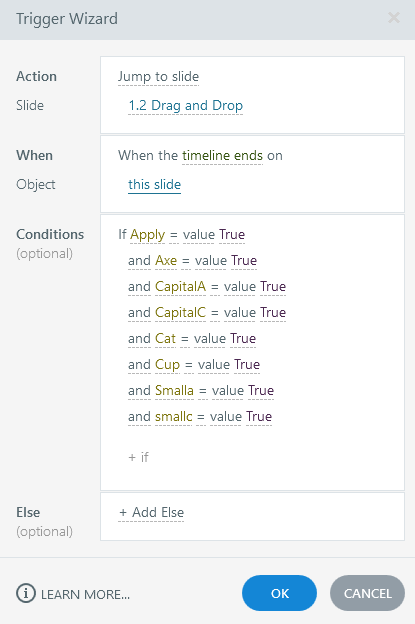

Those variables will also help shuttle the learner to the next slide. Again this'll be a lot of triggers, but one could create a trigger for each of those variables that goes to the next slide when the variable changes to true if ALL of the variables are true.

That example only shows two, but you'd need to add an "and" for every is-it-correct variable on that slide.

I like your implementation, and can see it's really coming together. Some of my impressions from a usability perspective are that the "ORDER#" text is hard to read. The R looks like an A, and the number is so close to the word that it risks being interpreted as a letter (5 looks like S in that font.) Since children in your audience's age won't be able to read or understand the word "order," I wonder if just the number wouldn't be simpler? Your Next Order button will likely benefit from a similar redesign, perhaps just being a round button with an arrow pointing to the right? Symbols will be much easier for them to understand.

To provide positive reinforcement, I think I would also recommend an extra "Yay, you did it!" layer rather than just jumping to the next slide when all of the toppings are added correctly. The jump would seem sudden to most people, so a layer appearing with some musical fanfare, some text congratulating the learner, and so forth would go a long way. Then a trigger on that layer could send learners to the next slide once the layer's timeline has ended, but that extra five seconds of validation supports the design of the learner's experience.

Hi kishorepalthya,

I like the pizza game you created. I’ve designed games for young children before and they would definitely enjoy this kind of activity! I concur with AndrewBlemings on adding some musical fanfare and a congratulatory message before moving to the next slide. Moreover, you could also add a transition in between to help prepare learners for the next one.

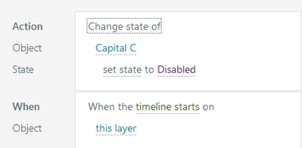

Since you already have layers for each correct match, you can change the correct drop objects to disabled states to lock in the relevant layer. No additional variables are needed.

You can also add a trigger to show the Ending Close layer when all object states are disabled. On this layer, you could include a sound effect and a congratulatory message we mentioned. You don’t actually need a button to jump to the next slide unless you’d also like learners to learn the phrase “next order” while playing the game. If you decide to jump to the next slide with a button, you can place the button here. Alternatively, you can set it to jump to the next slide automatically when the timeline ends, without requiring a button click.

Hi JoanneChen​,

Thanks for your input! I'm trying that out now and will get back once I've finished experimenting with it.

Really appreciate your help!

Best regards,
Kishore palthya.

Hi Everyone,

Thank you for your previous suggestions and guidance.

I have continued working on my Alphabetic Phonics Pizza Builder project and have successfully solved the issue of returning incorrectly placed toppings to their original position.

I am currently looking for help with one remaining challenge:

How can I automatically move to the next slide after all correct toppings have been placed?

My goal is:

• Display a congratulatory message or animation.
• Play a short success audio.
• Wait for 2–3 seconds.
• Automatically advance to the next slide.

Also, if there is an easier method for returning incorrect toppings to their original position, I would be interested in learning about it.

I have attached my updated Storyline project file for review. If anyone has suggestions for the best trigger setup, variables, or a simpler workflow, I would greatly appreciate your advice.

Thank you for your time and support!

Best regards,
Kishore palthya
