Interactivity in Custom Blocks is in active development and will receive updates as part of Labs. Functionality will change over time. Some options could be modified, while others may be removed based on feedback and feature stability. There is no guarantee that Labs experiments will become production features.

Get Started

Learner interactions, previously only available via Storyline 360 blocks or code blocks, can now be implemented directly in custom blocks! With the Interactivity in Custom Block lab enabled, you can create objects that show or hide when a learner clicks on them.

Add An Interaction

Getting started is as simple as inserting or editing an existing custom block.

1. On the canvas, select the source object you want to make clickable and click the Edit interactivity icon on the toolbar directly above the object or click Interactivity in the sidebar.
2. The Interactivity panel opens on the left.
3. Click Add interaction.

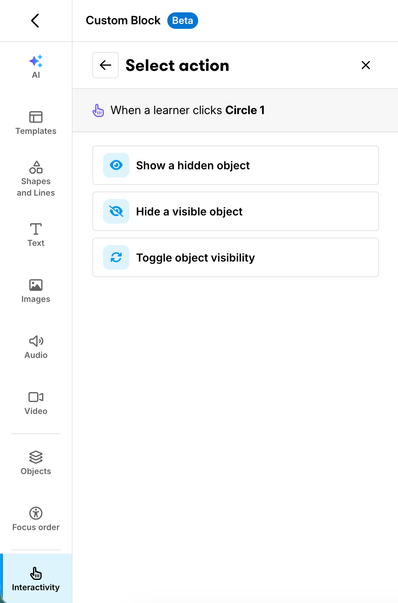

4. Choose what you’d like to happen when the learner clicks the source object:
   1. Show a hidden object - appears on the canvas and is initially hidden
   2. Hide a visible object - disappears from the canvas and is initially visible
   3. Toggle object visibility - switches hide-show visibility on subsequent clicks

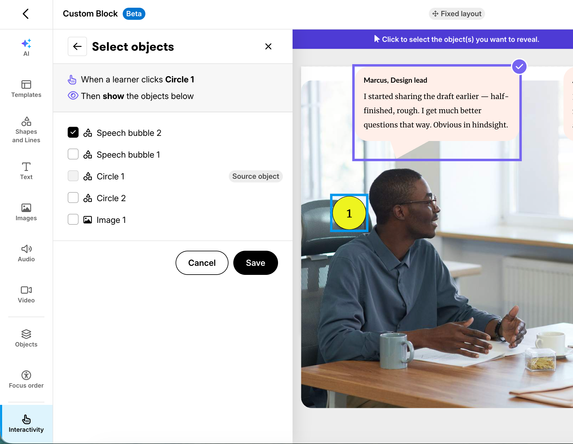

5. Select the object or objects you’d like to be the target of the action from the list or on the canvas.
6. Click Save.

Choose what you’d like to happen when the learner clicks the source objectSelect the object or objects you’d like to be the target of the action from the list or on the canvas.

A source object can trigger more than one interaction and have more than one target object. Just click Add interaction again to stack another interaction on the same object.

Manage Existing Interactions

Click Interactivity in the left sidebar to manage all existing interactions.

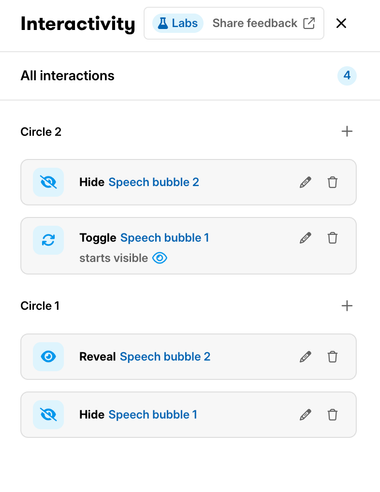

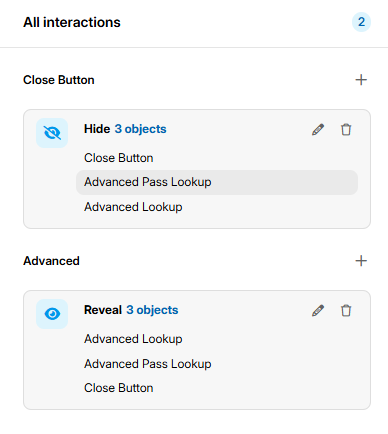

With no objects selected, you’ll see the All interactions list, containing every interaction in the block, grouped by the object that triggers it, with a count so you can see the total at a glance.

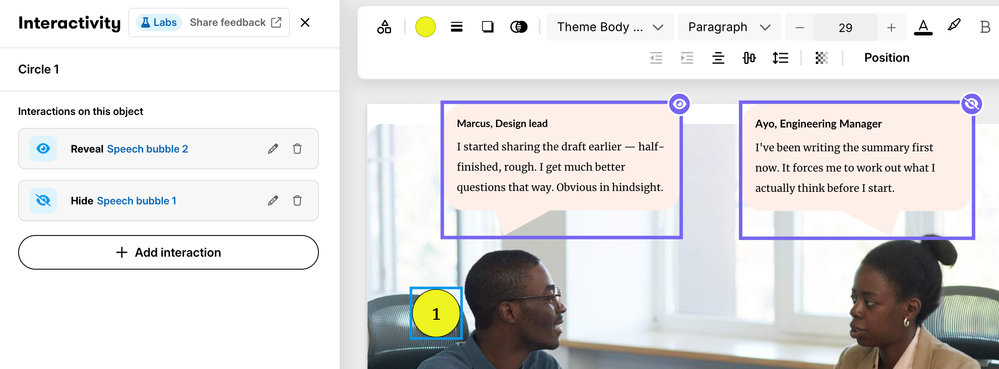

Select an object in the canvas to:

• Add an interaction by clicking on + Add interaction button.
• Modify an existing interaction by clicking its Edit icon.
• Delete an interaction by clicking on the Delete icon.
• Change the name of object labels by clicking on the object name. Changes made here are reflected in your Objects panel.

Verify Visibility at a Glance

With the Interactivity panel open, select an object with an interaction to see its source object’s initial visibility to learners. Objects that are the targets of a Show action are marked with an open eye icon and are initially hidden to learners. Targets of a Hide action are marked with an eye with a slash and are initially visible to learners.



Preview Your Interaction

Click Preview in the upper-right to see the learner's view and click through your interactions before you publish. You can also use the main Rise 360 preview function.

FAQs

Does this experiment affect my current custom blocks?

No. Enabling the Interactivity in Custom Blocks experiment won’t affect any of your current custom blocks.

Can I create interactive elements in a responsive Custom Block?

Yes. Interactivity is compatible with the Labs Responsive feature. However, keep in mind that both are evolving features and will change as we continue to make updates while they’re in Labs. Always check your work before publishing.

Can I add animations to the interactions?

At this time, the interactivity feature doesn’t support animations. However, this is on our product roadmap! Please leave us feedback and let us know what type of animations you’d like to see.

Are there templates I can start from that already have interactivity built in?

Not at this time, but we are in the process of building a set of interactive templates. If you have any ideas or current interactive blocks that you’d like to see converted to Custom Blocks, share them with us! We’d love the inspiration.

Provide Feedback

Both Interactivity in Custom Blocks (Labs) and Custom Blocks (Beta) are evolving features, and we need your feedback to ensure they meet the needs of all Articulate users. Please give us your feedback on the following:

• Uses: Are the directions and labels clear? Could you create all the interactions you wanted to with this feature?
• Bugs: Did any objects not trigger as you expected?
• Improvements: Are there any other types of interactions you’d like to have?
• Insights: Did this feature help make your courses more engaging for your learners?

You can enable and disable this feature from the Labs sidebar in Rise 360 or account settings page. Share your thoughts in this Labs forum or use the feedback form directly within the feature.
