Do you ever have to train learners on how to use an application or website? If so, you may want to consider using the screen recording tool in Storyline 360 to create some software simulations. Software sims are a great way to teach learners how to use an application, system, or website without affecting the real environment or live data. In this first part of a multi-part series all about software simulations, we’re going to take a closer look at the optimal size to set your recording area, and how you can keep it looking as neat and professional as possible.
Set Proper Recording Size
Setting your recording size to the proper size will ensure your software simulation looks crisp and clean and appears as high resolution, avoiding fuzziness and distortion of your background. By default, Storyline 360 slides are sized at 720x540 (that’s 720 pixels wide by 540 pixels high), which has an aspect ratio of 4:3. When you launch the screen recording tool in Storyline 360, the default recording size is 720x540, (or whatever size you've set your story to be) as indicated in the image below.

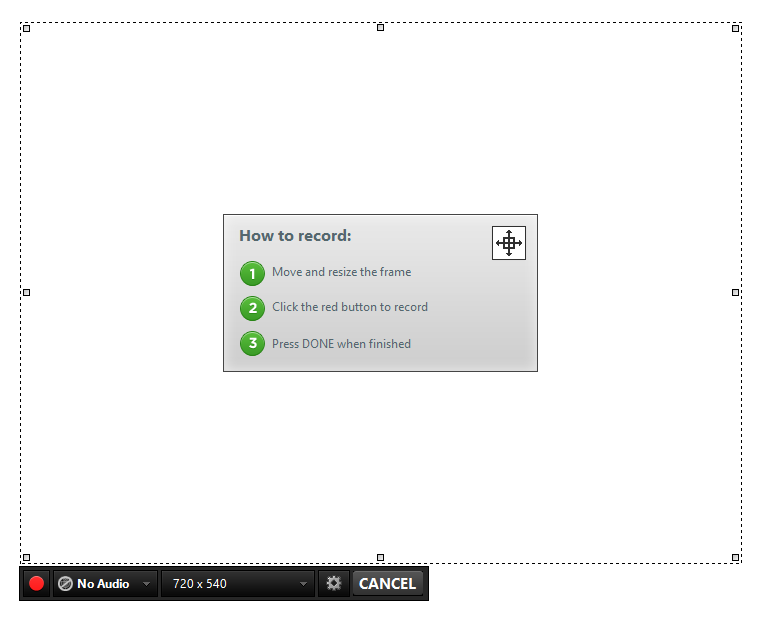

The default recording size in Storyline 360 is 720x540, or the same size as your slides.
However, to make sure your recording stays crisp and high resolution no matter what screen size you view your course on, it’s best to record at a larger resolution than 720x540—1200x900 or 1400x1050, for example—while maintaining the 4:3 aspect ratio.
In fact, as a best practice, it’s a good idea to record your software simulation with as big a recording area as your monitor will allow, while still keeping the same aspect ratio as the slides in your .STORY project. The reason it’s important to make sure your recording area is set to the same aspect ratio as your slide size is because if it’s not, you’ll have empty space on each side of your recording, which looks messy and unprofessional.
Notice the white bars along the top and bottom of the recording; this is caused by setting the recording area to a different aspect ratio than the slide size.
Another good reason to record at a larger resolution than 720x540 is that you might find it difficult to fit an entire software application or website into an area that small. In fact, certain applications can’t even be resized that small.
The key takeaway? Set your recording area to be as big as your monitor will allow, while always maintaining the same aspect ratio as your slides.
Keep It Clean
When you set up your recording area, try to get everything to look as neat and tidy as possible. This includes closing any personal bookmarks and tabs, closing any expanding menus, and hiding personal or irrelevant information.

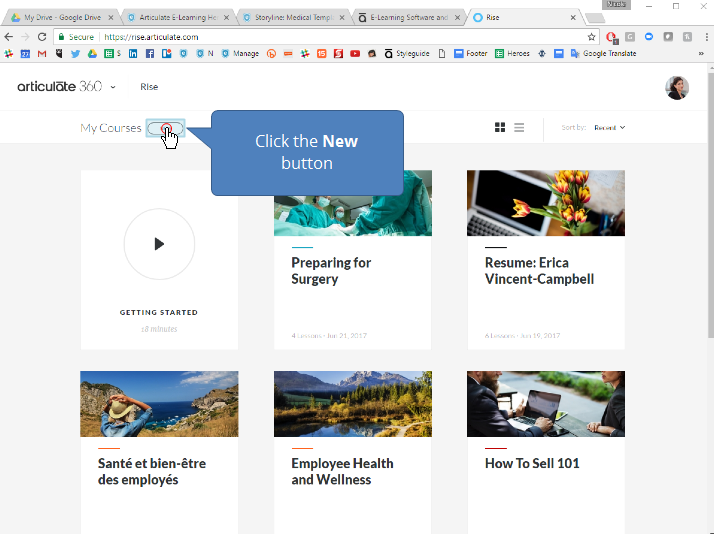

Before: Notice how messy it looks with all the tabs open
and personal bookmarks displayed.

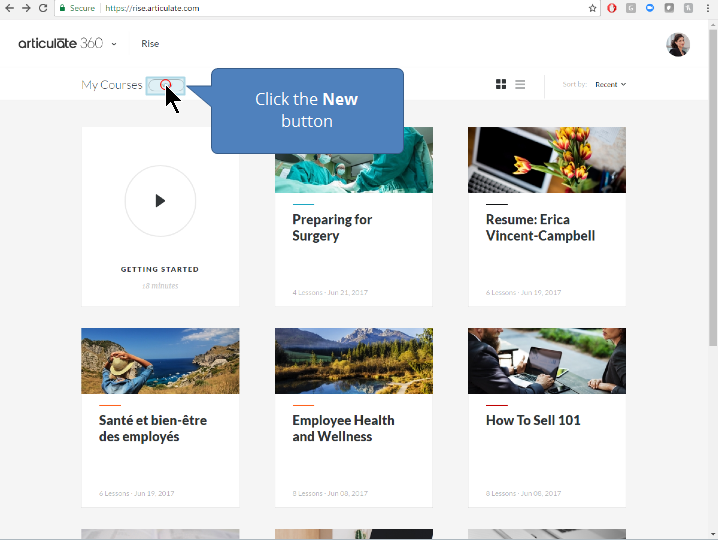

After: The recording area looks much tidier with all the
tabs and bookmarks hidden from view.
You’ll also want to close any systems with pop-ups or alerts to prevent something from appearing during your recording that you’ll have to edit out afterward. In my example above, I’m logged into the system using my own account, and my name and avatar are displayed. Depending on the topic at hand, I might go so far as to create another account with a generic avatar and name to make the content less personalized. It all depends on the specific requirements of your project.
Crop Out Unneeded Areas
When you set your recording area, you should also do your best to crop out any parts of the screen that the learners don’t need to see. For example, let’s say you’re creating a software simulation that shows how to use an application that runs inside a web browser. Do your learners need to see the URL bar and the scrollbar along the right-hand side? Consider cropping them out of your recording altogether to give your recording a sharper look; doing so also lets the learner focus solely on the parts of the screen that are relevant.

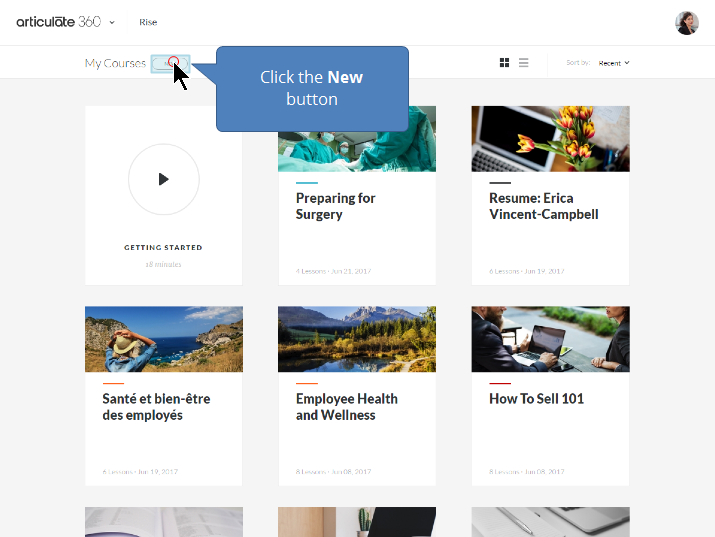

After: Look how neat and tidy this recording area looks with the URL bar and scrollbar cropped out of the recording.
These are my three top tips for setting a recording size and area that will help you create a high-quality, professional-looking software simulation. To read more articles, tips, and tricks related to creating software sims, check out this series: Everything You Need to Know About Creating Software Simulations with Storyline. Do you have any other tips of your own for setting the recording area and size? Let me know in the comments!
