GSAP timeline to speedup / slowdown any animations on it

As i mentioned before in some posts GSAP has a timeline that controls all animation. And probably Storyline uses that timeline for its animation too. As i didnot find a way to control Storyline's timeline i made a sample showing how perfectly and easily GSAP's timelines control the speed of animations.

https://360.articulate.com/review/content/bc85877a-e885-42c1-b216-bb771ca0e007/review

Im gonna add some more elements to it soon to test whether audio and video speed are controllable this way too.

~Math

34 Replies

  • Thank you Math, hope you can found a solution, also I asked Mark if he knew something new.

    I was so secure about the code, and now I need to do 13 materials accessible with these functions at the end of the week, I am going to cry if we don't found a solution. :P

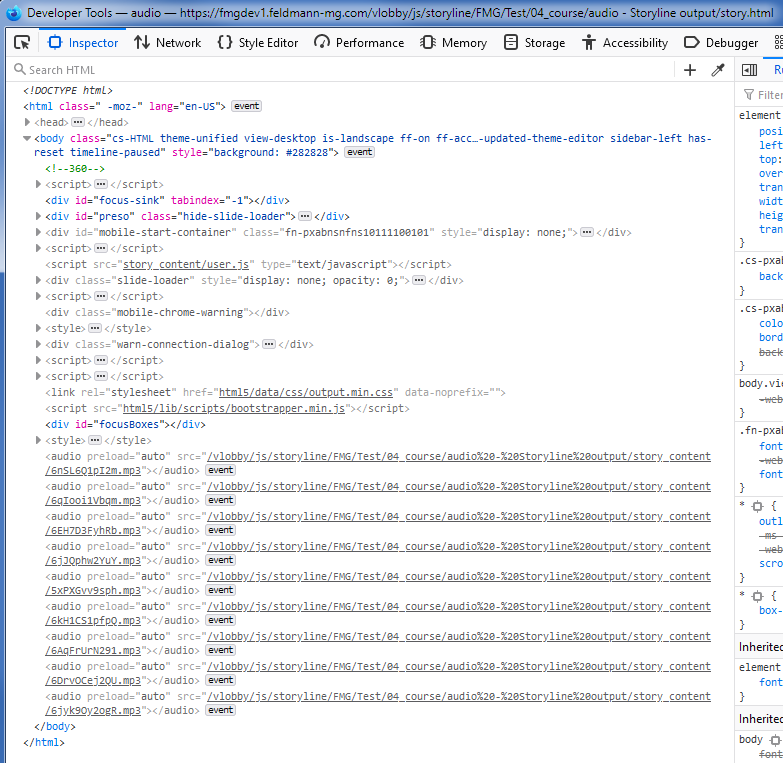

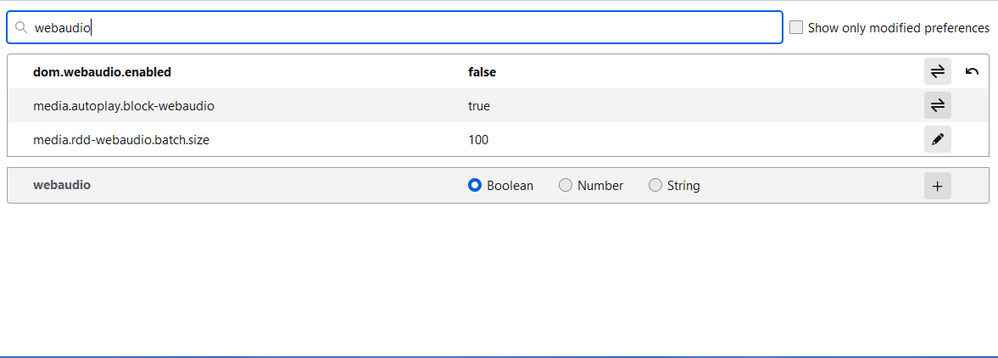

  • one idea - you would have to prevent storyline from switching to web audio

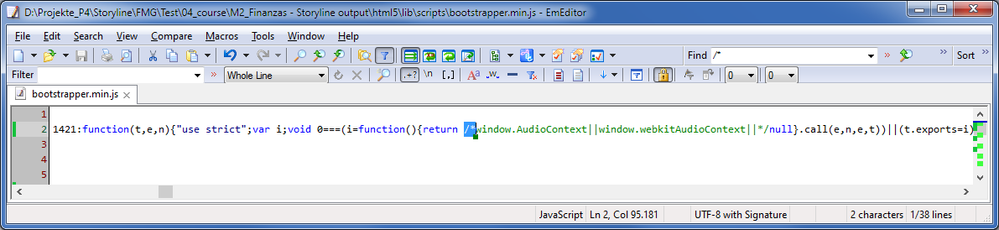

    for this you have to patch "html5/lib/scripts/bootstrapper.min.js"

    replace
        return window.AudioContext||window.webkitAudioContext||null
    with
       return /*window.AudioContext||window.webkitAudioContext||*/null

    => the player gets always the info "no web audio" available, use "normal audio"

    important: save your patch js library - which is exacly for one storyline version - and copy the file after every publish

    result on a https:// webserver

    if you want the patched file for all your courses you could overwrite the library file in the programm folder  - so a manual overwrite after every publish should no longer be necessary
    (just not tested !)



  • new idea

    copy

    window.AudioContext = null;
    window.webkitAudioContext = null;

    to

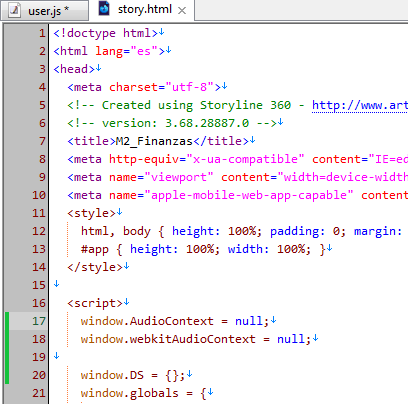

    story.html + index_lms.html

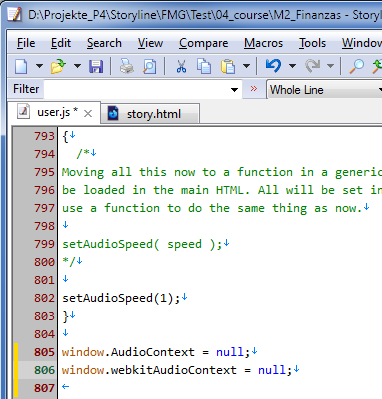

    or better at the end of the user.js

    the two lines cannot be added to the internal storyline javascript - it's to late



  • you have a big problem with loading your custom libraries - they are only loaded if the learner starts your course the first time

    with resume enabled your first page with your initialisation will never started

  • I know... the things i upload mostly exist of 1 page setups...so no resume anywhere.
    For a real course i have a setup where i have these on MasterSlides with variables checking if its loaded. If so... it skips it. I seldom use resume in the samples showing here. Users that download and reuse my tips and tricks indeed need to be aware of that indeed.

  • do you have the two line patch on the right position?

     the lines had to be added AFTER the publish

    • AlheliRiosIxta's avatar
      AlheliRiosIxta
      Community Member

      Hi Jurgen,

      I send an email in your profile account of ELearningHeroes, I would like to contact you, do you have another contact to send an email or a LinkedIn name?

      Thank you.

  • I have read your email and your question was

    BTW I have another question, but it is for another function, do you know how a user can change the size of the closing caption by running a Java, I found some solution, but this one only works for one time.

    I used:

    Big size

    if (!window.alteredCaptions) {
    var sheet = document.createElement('style');
    sheet.innerHTML = ".caption{font-size:180% !important;}";
    document.body.appendChild(sheet);
    window.alteredCaptions = true;
    }

    Small size

    if (!window.alteredCaptions) {
    var sheet = document.createElement('style');
    sheet.innerHTML = ".caption{font-size:140% !important;}";
    document.body.appendChild(sheet);
    window.alteredCaptions = true;
    }

    Any advice for this?

    this could be interesting for others

    here is an example, to switch the CC size in the course

    https://360.articulate.com/review/content/64b7f0b8-1cdc-4918-80bf-12eaf86edd11/review

    prepare script -> on timeline starts - on every page* which uses CC (because of resume course)

    if( !window.alteredCaptions ){
      style = document.createElement('style');

      style.textContent = `
        .CC-small .caption {
          font-size: 140% !important;
        }

        .CC-big .caption {
          font-size: 180% !important;
        }
      `
      document.body.appendChild(style);
      window.alteredCaptions = true;
    }

    the button script (for 180%)

     // reset
    document.body.classList.remove('CC-small', 'CC-big');

    // set
    document.body.classList.add('CC-big');

    the button script (for 140%)

     // reset
    document.body.classList.remove('CC-small', 'CC-big');

    // set
    document.body.classList.add('CC-small');

    the button script for reset size

     // reset
    document.body.classList.remove('CC-small', 'CC-big');

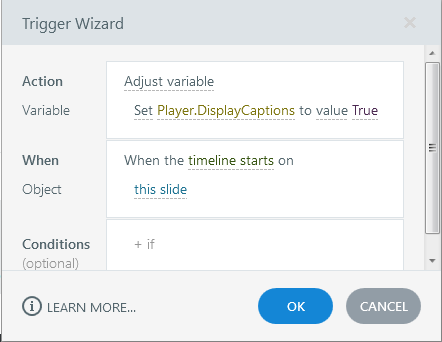

    to set "CC on"

    if you wan't to store the state of the CC size - use a variable

    * or once in story.html/index_lms.html or at the end of user.js

    • AlheliRiosIxta's avatar
      AlheliRiosIxta
      Community Member

      Hi Jurguen,

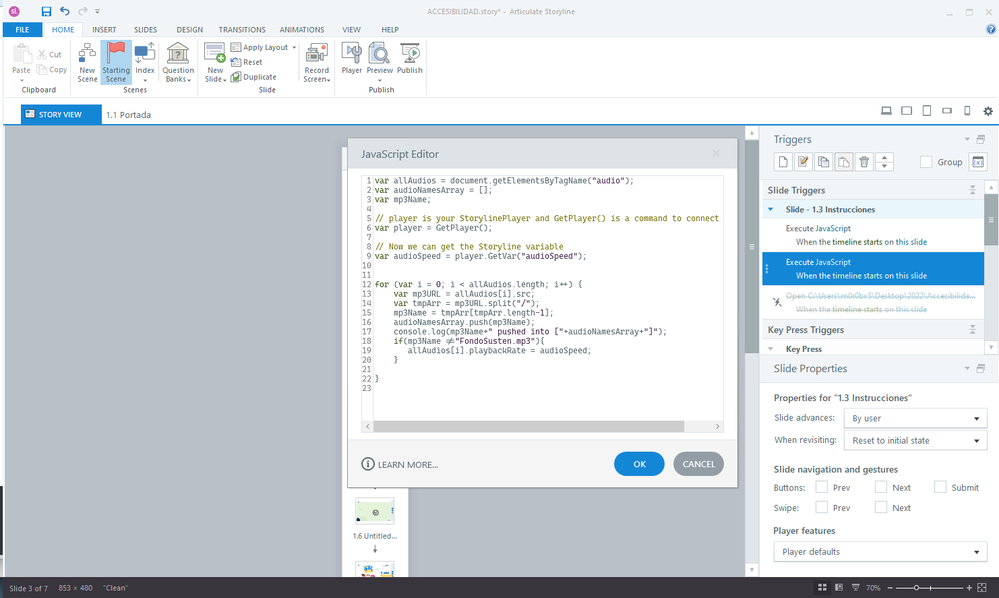

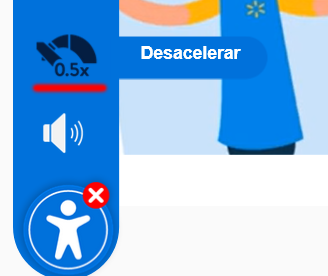

      I been having problems with my background music, when I speed down my audio, also the music slowdown, can you help me to identify what I'm doing wrong.

      One more question, is there any way to add in the code that respects the speed of audio en video playback from one slide to another, because every time I advance to the next slide the user would have to click on speed +/-, right now it just works with audio, but if I have both this doesn't work :(

      Please!!!!

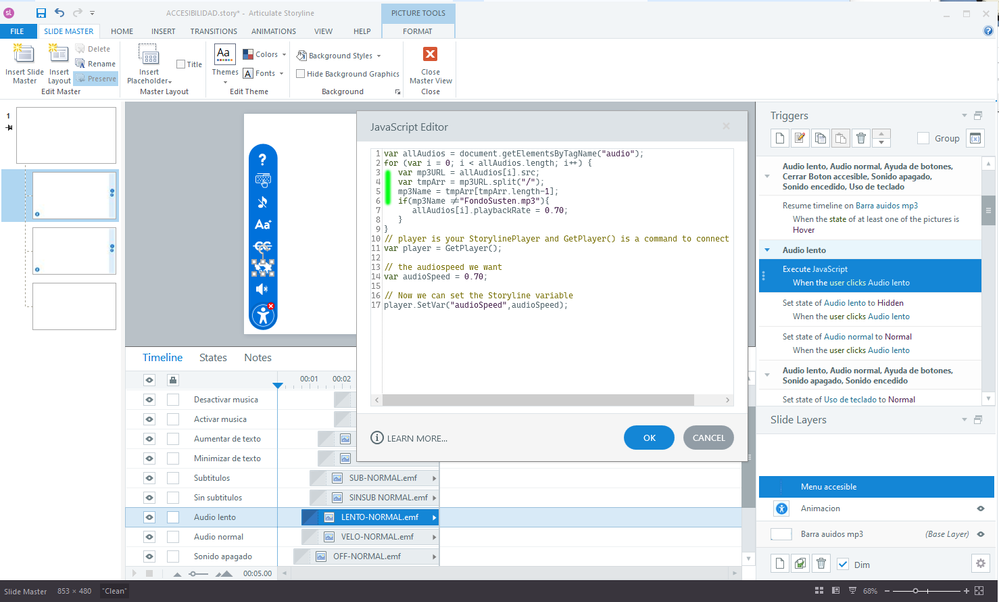

  • first problem - the button script in the slidemaster

    wrong:

    var allAudios = document.getElementsByTagName("audio");
    for (var i = 0; i < allAudios.length; i++) {
      allAudios[i].playbackRate = 0.70;
    }
    ...

    correct:

    var allAudios = document.getElementsByTagName("audio");
    for (var i = 0; i < allAudios.length; i++) {
       var mp3URL = allAudios[i].src;
       var tmpArr = mp3URL.split("/");
       mp3Name = tmpArr[tmpArr.length-1];
      if(mp3Name != "FondoSusten.mp3"){
          allAudios[i].playbackRate = 0.70;
       }
    }
    ...

    second problem: audio is working correct after slider change - your script is correct

    BUT: you have to update the navigation button also (on timeline start on every slide)
