Forum Discussion
How to hide Green/Red feedback bar at the bottom of quiz while review?
Hi out there,
Is there any way to hide red/green feedback layer coming in quiz while reviewing answers.
Thanks in advance. :)
- SteveFlowersCommunity Member
Hi Parashuram,
You can't remove this object. However, in your quiz master, you can cover it up. Draw a shape at the bottom of the slide on the slide master the same color as your background and it will cover the review feedback object.
- StevenWalsh-711Community Member
Yes this is something I can share. To start with, Articulate is currently in process of updating their Storyline player to make it more accessible. It is my understanding that Articulate will stop including jQuery in their new player. So if you use the jQuery code I previously shared, once Articulate moves to their new SL player, you will need to include jQuery, or change the code.
So a better option is to use only JavaScript. The following code is what I came up with after a little research. This assumes that the aria-label for the Correct and Incorrect ribbons will stay the same.
document.querySelectorAll('[aria-label="Correct"]')[0].style.display = "none";
document.querySelectorAll('[aria-label="Incorrect"]')[0].style.display = "none";This code needs to be placed in an Execute JavaScript Trigger on each question page in the assessment, set to When timeline starts.
The assessment I built includes a variable called assessReview which is initially set to False. I only run the JavaScript when assessReview == True. Selecting the Review button, first sets assessReview = True, then calls the Trigger to review the results.
I tested this in IE Version: 11.1069.17134.0 and Chrome Version 78.0.3904.97 (Official Build) (64-bit).
- WendyFarmerSuper Hero
Perfect Steven - thanks so much for sharing :-)
- LeeWebberCommunity Member
Thanks Wendy for your reply. Yes I have additional feedback using the review layer set up but the clients wants the coloured bars changed to their corporate red and green! I suspected this was not possible as I cannot see anywhere to edit these bars.
- WendyFarmerSuper Hero
Hi Lee
you could add the banners in your corporate colours to the customised review layer so that your review layer displays and not the default one
- LeeWebberCommunity Member
Thanks Wendy, in light of not being able to edit the bars themselves, I took your advice and covered them with a review mode bar, which works for my client too!
Many thanks!
- WendyFarmerSuper Hero
Excellent Lee - glad you got it sorted and all the best with your project!
- leannCommunity Member
Hi Lee, I have a question about your design here. Are the x's, checkmark, and review mode bar in a layer together? Is this layer a custom one you created or the default incorrect/correct ones that are present when creating a graded quiz?
Thanks in advance
- LeeWebberCommunity Member
Hi Anh
I've dug out this project from my 2017 archive! and the X', checkmarks and review mode bar are all on one layer which I called 'Review'. This is an additional layer to the Incorrect/Correct ones.
I hope this helps!
- StevenWalsh-711Community Member
CODE BROKE!
Unfortunately with the latest update of Storyline 360, January 2020, Articulate has decided to change where they put alt text from “aria-label” to “data-acc-text”. So with the latest update, we can no longer find an object on stage using “aria-label”, “data-acc-text” has to be used for this way of selecting.
The code to hide the Correct and Incorrect ribbons as of today is:
document.querySelectorAll('[data-acc-text="Correct"]')[0].style.display = "none";
document.querySelectorAll('[data-acc-text="Incorrect"]')[0].style.display = "none";Anything published with a previous version of Storyline 360, December 2019 and before, works with “aria-label”. Anything published with a later version needs the new code until Articulate again decides to change where they place the alt text.
Of course, it would be best if Articulate gave us a check box to turn off the ribbon.
- JeanneMillerCommunity Member
How do I get to the quiz master that shows me the red/green feedback bar so that I can cover it up? (btw I really hate it--why was it added?) My feedback layers show that a box with correct/incorrect and the feedback text; it doesn't show the red/green feedback bar.
- WendyFarmerSuper Hero
Feedback bar only appears in review of a quiz. As per Steve's advice above go to the slide master for the quiz layout you are using.
View > Slide Master > choose the layout
Hi Jeanne,
You can't remove those red/green bars on the review - but you can look at customizing the review layer so that it's a bit more hidden. The review layer isn't visible by default so you'll want to look at the steps described in this older discussion to modify it.
- LeeWebberCommunity Member
Hi, I have been asked by a client to change the colours of the red and green bars that appear when reviewing a quiz - I have gone to the feedback master but I cannot find anywhere to edit the colours of these bars - is this possible in Storyline 360 or are these bars mandatory. It seems strange that you can edit almost everything else to comply with a project colour scheme except these - or am I missing something?
- WendyFarmerSuper Hero
Hi Ker
you can't change the banner colours but this blog might help you with customising
- LeeWebberCommunity Member
- WendyFarmerSuper Hero
Hi Lee

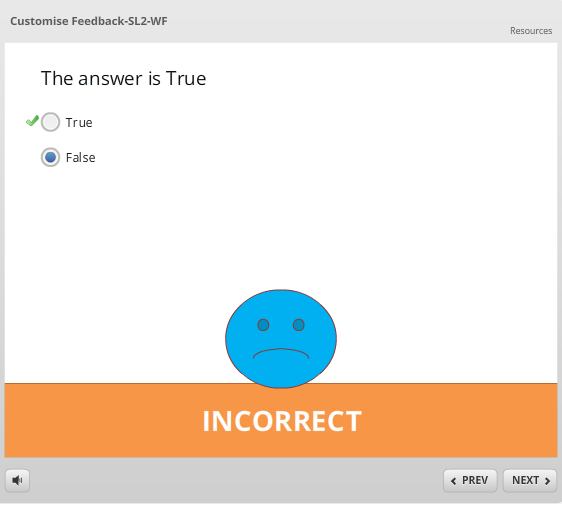

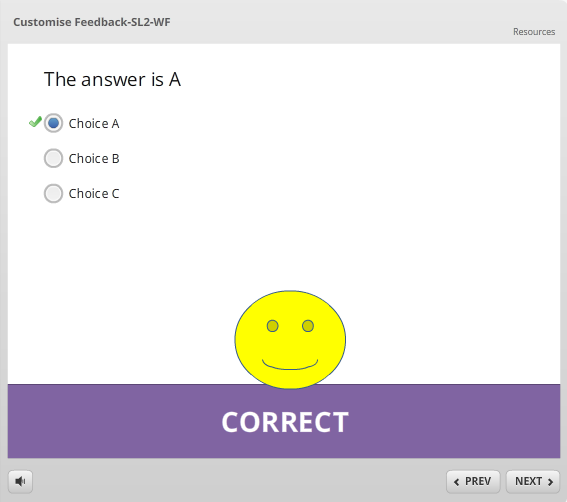

Hard to say how you have it setup without seeing your file. Here are two slides with customised review feedback as an example. I used variables and triggers (and hideous colours) to display it.
Hi anh,
The image that Lee shared above looks to be the built-in features of Storyline when using a graded quiz.
I'm not sure if he's still subscribed here, but you are welcome to reach out to the user directly via the 'Contact Me' option on the user profile if you do not hear back soon.
If you're running into difficulty with something, just let us know, and we'd be happy to help you out.
