Text hyperlink states not applying to some hyperlinks
I'm encountering an issue in Storyline where a text box with hyperlinked words is not applying the hyperlink states to some of the text links.

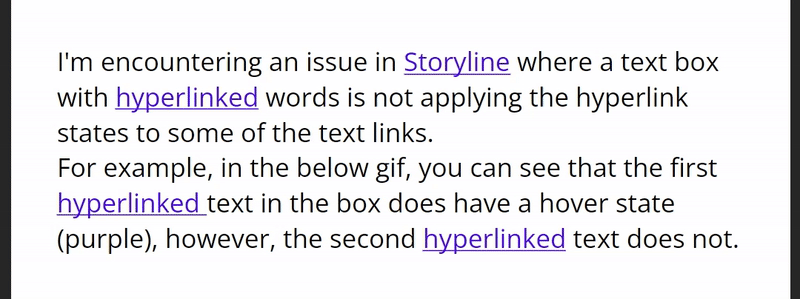

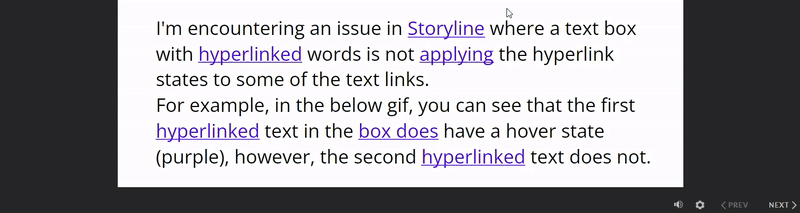

For example, in the below gif, you can see that the first hyperlinked text in the box does have a hover state (purple), however, the second hyperlinked text does not.
I have found only one consistent thing across all the hyperlinked text's being affected by this issue. When previewing the course, I opened up the Inspect window to find the hyperlinked text's class value. When I check the style tags for that section, to make sure that a :hover is being applied to the correct class value, I noticed that the first few characters of the matching class value to the hyperlinked text's are not green like the rest of the class value or the others (see below).
No matter what I try, I cannot get these specific words to show the correct state. I've tried;
- Removing the hyperlink and reapplying it
- Removing the entire text box, and reapplying the hyperlinks
- Forcing an a:hover with an !important flag in the Inspect CSS (which worked for the other hyperlinks)
I'd love to get some feedback on this one. I can't just leave it as is, as this module needs to be WCAG 2.2 AA compliant, and that includes hover states applying correctly.
I'm also unable to upload the .story file (either whole or in part) due to privacy requirements from my client.
Storyline version: 3.98.34222.0 (issue was occurring in older versions as well)
11 Replies
- JHauglieCommunity Member
When we have had this issue before, we did a workaround - put a hotspot (rectangular) over the text link that points to the correct URL. We then manually tweaked the text so it looked like a hyperlink (blue, underlined) - that was an effective solution for us. Your WCAG requirements may not let that pass, but you could try.
- Laura_is_an_IDCommunity Member
I've found you can only add one hyperlink per text-box. So you will likely have to add another text box, or use a hotspot or shape as JHauglie suggests.
- Laura_is_an_IDCommunity Member
not being particularly savvy with code, perhaps you could try creating another text box with a link to the place you want your second hyperlink here to go.
then get into the back end and copy the class value of the off-screen link and insert it into the class value of the 2nd hyperlink (that currently has the same class value as the 1st hyperlink).
Not sure if it would work--but could be worth experimenting with? ...even if only for curiosity's sake. - NedimCommunity Member
I can't replicate this issue. I'm using the latest version as well. I copied the first paragraph of your post and pasted it directly into Storyline, then added four hyperlinks. I confirmed that all hyperlink hover states work as expected.
The presence of the "textlib-wrapper" class suggests that the 'Add scroll bars' option may be selected in the text box properties, which I believe is causing the issue. - AlistairCommunity Member
Normally, I would just use a separate text box or a hidden shape on top for my hyperlinks, but as this module needs to comply with WCAG 2.2 AA, the text needs to be reflowable. When Accessible Text is enabled, the line-spacing is adjusted, so any additional shapes or textboxes would lose alignment.
Regarding the textlib-wrapper class, I believe this is used for textboxes when Accessible Text is enabled. Without Accessible Text enabled, the hyperlink states work fine. Seems that enabling Accessible Text, which converts all the text to 'accessible versions', is ironically making the text fail WCAG accessibility by removing some of the hyperlink states.- NedimCommunity Member
I see what you're referring to—I should have paid closer attention to your original post. When "Accessible Text" is enabled, only one or a few links work as expected, showing the hover state, while others do not. Unfortunately, there's no simple solution to this at the moment. This is something Articulate should address in a future update.
That said, I do have a workaround that involves JavaScript. The solution uses a "MutationObserver" to detect when "Accessible Text" is enabled (i.e., when Storyline enforces the "textlib" classes) and dynamically assigns the classes on the anchor (<a>) elements. The tricky part is to copy a class of anchor element that works and when "textlib" is available remove current class of all anchor elements and assign the working one. Switching "Accessibility Text" on and off will not break this functionality. While it's not ideal, it can help fix the issue in the meantime.
- KevinNoltyCommunity Member
Nedim - can you please share your JavaScript solution in more detail here? Thank you.
- KevinNoltyCommunity Member
Alistair Articulate should really find a solution for this. Since your posting in Feb, have you found an accessible fix to the hover issue? If so, can you please share it here? I did not see a answer on past version history builds or on the feature roadmap. Thanks.
- AlistairCommunity Member
As far as I'm aware, a proper fix hasn't been implemented by Articulate. What I ended up doing (as I had a deadline) was enabling Accessible Text by default and firing a JavaScript trigger when the timeline starts to force new hyperlink CSS colours.
Additionally, because of the WCAG colour contrast requirements, I needed to have a different hyperlink hover colour on my layers (since my layers have a dark grey background and my base slides have a white background). So, I put another JS trigger to fire when a layer is hidden to switch between the 2 CSS fixes.Please note, the below only works for Accessible Text - this is why I ended up having it enabled by default.
Base Slide & Layer JSI put this on my slide master to fire whenever the timeline starts on a slide. This creates my new hover colour with an !important tag for ALL text hyperlinks on the slide and appends it to the header instead of the text box.
It finds the content wrap that the accessible text lives in and checks that the JS CSS fix isn't already applied. If it's not, it then creates and applies the CSS fix to the header. This way, I don't need to worry about having custom object ID's for all my text boxes. I can just apply this fix to a slide at the master level and it does everything for me.
const parentDiv = document.querySelector(".textlib-content-wrap"); if (parentDiv && !document.getElementById("hoverStyleFix_Base")) { const style = document.createElement("style"); style.id = "hoverStyleFix_Base"; // Unique ID to prevent duplicates style.innerHTML = ` .textlib-content-wrap a:hover, .textlib-content-wrap span:hover { color: #62165C !important; } `; document.head.appendChild(style); // Append to head instead of parentDiv to ensure global effect }
Removing the Custom CSS Fix from the Header
For my layers, I simply change the style.id and getElementByID in the above code to a new unique name and use the same code, but I add the below code to the same JS trigger before the above code. This finds the existing JS CSS Fix for the base slide and removes it before applying the new JS fix for the layer. If I don't do this, then the layers hyperlink text is also the same as the base slide, which fails WCAG requirements. When I close the layer, I do the same thing but I flip the unique ID name so I'm removing the layer CSS fix and re-applying the base CSS fix.
const styleElement = document.getElementById("hoverStyleFix_Base"); if (styleElement) { styleElement.parentNode.removeChild(styleElement); // Remove the entire custom JS CSS fix <style> tag }
Hopefully that all makes sense 😀
