Storyline 3: Importing Closed Captions for Narration and Videos

Make your Storyline 3 courses more accessible for hearing-impaired learners by importing closed captions for narration and videos. It’s easy. Just insert standard SRT, VTT, SBV, or SUB files.

If you don't have caption files to import, you can create closed captions from scratch using Storyline's built-in editor. See this user guide for details.

• Preparing Your Caption Files
• Importing Captions
• Deleting Captions
• Exporting Captions
• Choosing a Font for Your Closed Captions
• Showing or Hiding the Closed Captioning Button on the Player
• Using Triggers to Turn Closed Captions On and Off

Preparing Your Caption Files

Storyline supports SRT, VTT, SBV, and SUB files generated by third-party captioning services, such as YouTube, Amara, and 3PlayMedia. Here are some tips to make sure your caption files are properly formatted for Storyline.

• Storyline 3 supports bold, italic, and underline formatting in caption files as well as voice tags to indicate which person is speaking. All other formatting tags, such as font and font color, will be ignored. (Use the caption font setting in your player properties to specify which font should be used for your closed captions.)
• A caption will automatically wrap if it’s too long to fit on a single line. However, if you need a caption to break at a specific point, add one line break in your caption file in the appropriate place.

  On the other hand, if you need to split a caption into two separate caption boxes that display simultaneously, add two line breaks in your caption file. You might do this when two people are speaking and you want each speaker’s dialogue to display in its own caption box.
• If some letters or characters in your captions are unexpectedly replaced by symbols in Storyline 3, make sure your caption files are encoded for UTF-8.

Importing Captions

Closed captions are supported for audio tracks and videos. You can import captions simultaneously with your media, or you can import captions separately. We describe both options below.



Deleting Captions

To delete captions you previously added:

1. Select the audio track or video that has captions you want to remove.
2. Go to the Options tab on the Storyline ribbon and click the garbage bin icon next to Captions. (The icon will be grayed-out if there aren’t any captions to delete.)

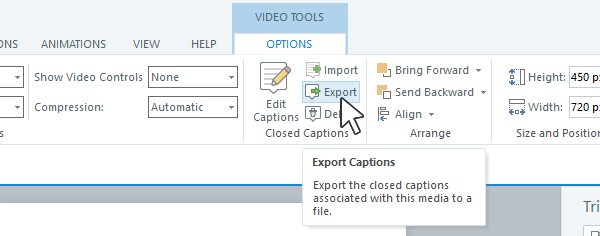

Exporting Captions

Need to export captions from Storyline so you can edit them or use them in another project? Here’s how:

1. Select the audio track or video that has captions you want to export.
2. Go to the Options tab on the Storyline ribbon and click the arrow icon next to Captions. (The icon will be grayed-out if there aren’t any captions to export.)


3. Choose a location where you want to save your caption file, then click Save.

Choosing a Font for Your Closed Captions

Choose a font for your closed captions in the player settings. Here’s how:

1. Go to the Home tab on the Storyline ribbon and click Player.
2. When the player properties window opens, click Colors & Effects on the ribbon.
3. Use the Captions font drop-down list to select a font.
4. Click OK to save and close the player settings.

To increase the font size for captions, adjust the font size in your player properties. Note that this setting affects all your player features, not just captions.

1. Go to the Home tab on the Storyline ribbon and click Player.
2. When the player properties window opens, click Colors & Effects on the ribbon.
3. Increase the Player font size percentage. It can be any percentage between 75% and 200%.
4. Click OK to save and close the player settings.

Showing or Hiding the Closed Captioning Button on the Player

The closed captioning button on the course player is enabled by default, but you can disable it if you plan to build your own custom controls.

1. Go to the Home tab on the Storyline ribbon and click Player.
2. When the player properties open, mark the Captions box to show the closed captioning button or uncheck it to hide the closed captioning button.
3. Click OK to save and close the player settings.

Tips for interacting with the closed captioning button:

• The closed captioning button may not always be visible throughout your course. It’s only visible when captions are available on the current slide or layer. It’ll disappear for slides and layers that don’t have captions.
• When a learner clicks the closed captioning button to turn on captions, the button will remain turned on throughout the course until the learner clicks it again to turn it off.

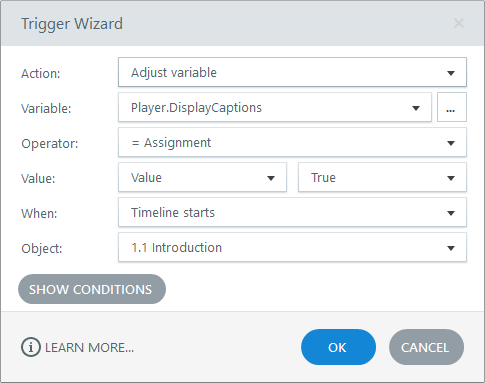

Using Triggers to Turn Captions On an Off

If the closed captioning button is enabled on your course player (see above), learners can toggle captions on and off whenever they want. However, you can also control captions via triggers. Just adjust the built-in Player.DisplayCaptions variable to either True (on) or False (off).

Here are a couple scenarios where you might control captions via triggers and how to set them up.
