Issue with SCORM randomly stopping communicating with LMS (Moodle)

To add, SCORM is 2004

I didn't think Moodle supported SCORM 2004.

That could be it then! We recently switched from 1.2 to 2004 to get separate passed and completed statuses. We'll switch back and retest. Thanks.

From Moodle's docs.

SCORM 2004 is not supported in Moodle. Parts of the API have been implemented, but others such as Navigation and Sequencing have not. Development on native SCORM 2004 support in Moodle has stopped. If you require a fully certified SCORM 2004 Player in Moodle, Rustici Software have a Moodle plugin which connects to their commercial SCORM Cloud service turning Moodle into a fully compliant SCORM 2004 LMS.

SCORM FAQ > Supported Versions

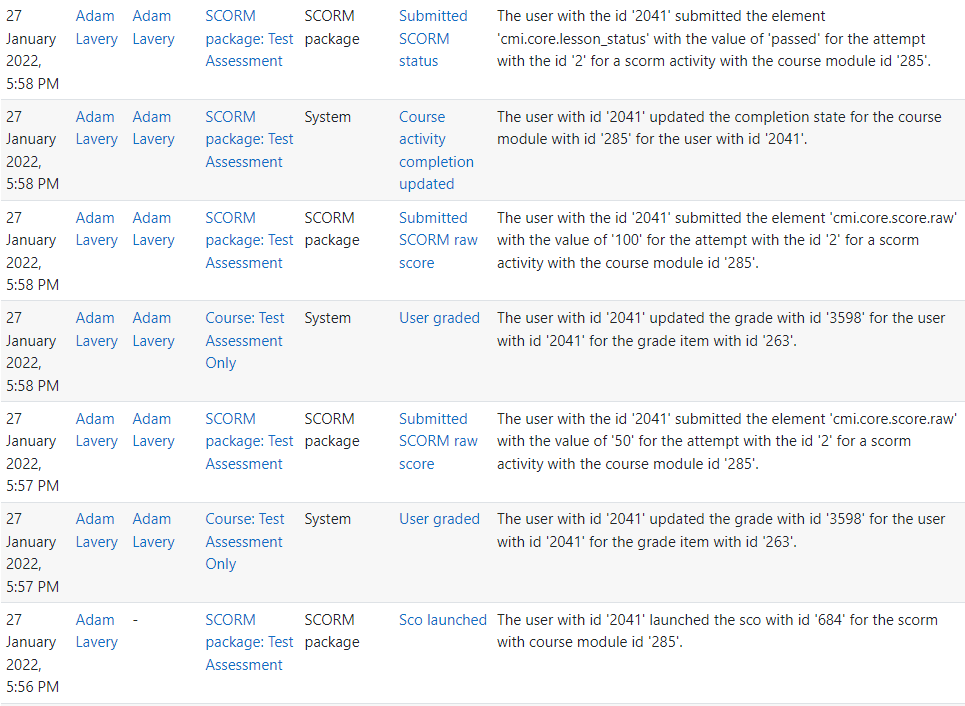

Thanks. We only recently switched to 2004 to resolve another issue. However, switched the test assessment back to 2.1 and see the same behaviour. Everything fine for 1st attempt but then sporadic recoding of results for subsequent attempts. Same whether using the 2nd attempt in the SCORM or exiting the activity and going back in. Here's log for a subsequent attempt i.e. LMS attempt 2 rather than SCORM retake (which allows 2 goes):

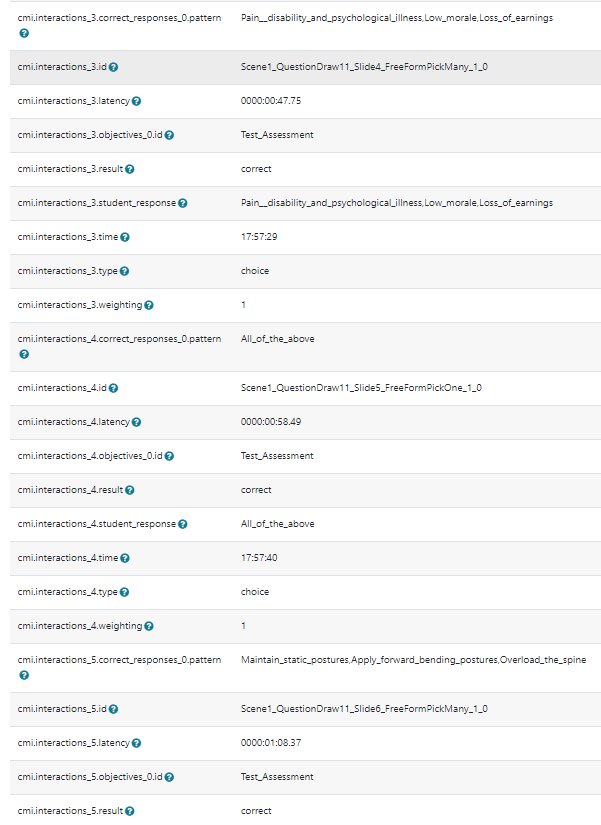

Notice just 2 of the 10 scores logged (at 50 & 100 i.e. questions 5 & 10). However, here's an extract of the interactions report:

These are questions 4-6, all of which are correct and should have recorded a score. I answered all 10 correctly so there should be 10 scores logged, but only 2 were, It's seeing all the interactions but not logging them all. In this case it logged the passed status hence course shows has passed. In real-world cases, there's no log of status hence remains incomplete even though the learner received a pass.

Seems to me that somewhere between receiving an interaction and recording it something is going wrong.

Anyhow, I think this confirms that the issue is in Moodle and not Storyline so will switch focus to the Moodle question raised. Here if anyone wants to follow: https://moodle.org/mod/forum/discuss.php?d=431273

I am having the same issue with a handful of quiz takers in a SCORM 1.2 course (made with Storyline 360) and our Moodle-based LMS. Did you find any resolution? I have been unable to find a solution on Moodle forums.

The resolution has been to change the course assessment to force a path that ensures the scores are properly recorded. We've disabled the exit option, added a warning on the fail/success layers that they must click a button (to progress to next slide) to correctly record scores. "Exit" slide has actions to forcefully record the completion/passed status and close.

The reason for the missing raw score logs is that the SCORM only periodically reports the interactions back to the LMS (every 30 seconds or so). If multiple questions have been answered between report backs, only the last score is logged. However, the full set of SCORM interactions is passed back and recorded. The missing raw score logs is confusing but a non-issue.

We're assuming this reporting delay introduces a window of opportunity for the learner to close the browser before the final scores and completion status have been reported back to the LMS. Adding a positive action final slide to exit the course, that ensures the status is reported back, seems to do the trick.

Learner may ignore correct path and simply close the browser window before final scores/status is reported back, but then that's on them!

Thanks for your reply, Adam!  Would you be willing to share an example of that positive action final slide with the instructions to forcefully record the completion/passed status and close? Did you use javascript or a built-in storyline trigger to do that?

I understand that in moodle there is an auto-save delay option that can be set (see attached). Do you or does anyone know if that is for moodle's own quiz settings or does it work for SCORM quiz results, too? Is this the reporting delay you are talking about, Adam?

I've thought of resetting that to only a couple seconds or so (the default is 1 minute), but since I haven't been able to recreate the problem a handful of our users are encountering, will it be a waste of time? Maybe someone else would chime in or tried this?

I really appreciate any help because I'm the only one here at my organization working with all these programs and these forums are the only help I have. Thank you!

That auto-save setting looks to be for Moodle quiz activities rather than SCORM. The reporting delay we monitored between the SCORM and LMS was around 30 seconds.

The way we have tackled this is belt, braces and safety pins! Submit the results twice and explicitly mark course completed/passed on exit after success.

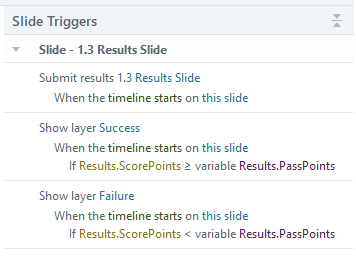

Results slide:

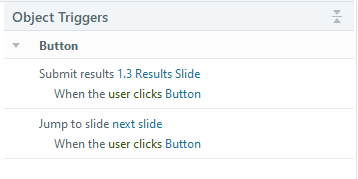

Success layer: add button "Save score and continue" with

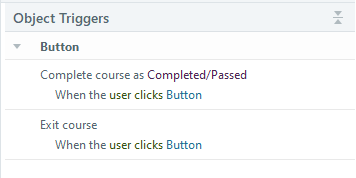

Exit slide: add button "Complete course and exit" with

The theory is that on success the player must still be communicating with the LMS to move to the next slide. We save the results on entering the results slide. Then again on moving to next slide and finally explicitly mark as completed/passed when clicking the exit button.

Just fyi, I'm an IT man/developer and have only recently got involved with eLearning in the last few months. Steep learning curve!

Thank you so much! Your screen shots are very helpful.  I have similar object triggers at the end of my storyline courses, but I do not have a specific exit slide with the "Complete course as Complete/Passed"

How did you determine it was 30 second delay? Did you do some testing to see if adding that extra step was the key? Is is possible that the extra time/steps involved with the extra exit slide helps ensure the retry results autosave?

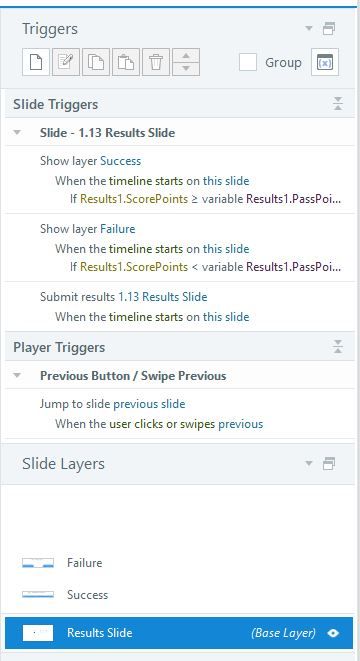

Here is my result layer:

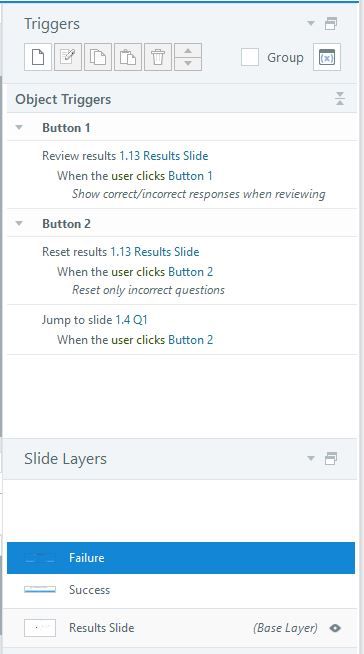

You didn't show your failure layer, but here is mine.  Maybe there needs to be an autosave delay in the retries?   Or am I overthinking this?

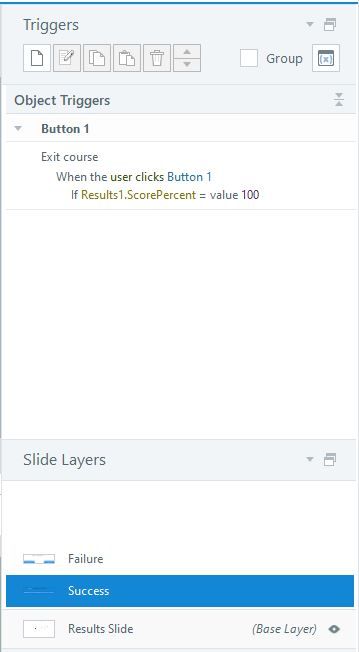

And here is my Success layer:  You can see that in this layer the results must be 100% before they can exit.  If not, they can't even reach this layer.  I will try your method with the save score and continue (to an exit slide) like you suggested and see if that does the trick.

I'll report back here to later if this method works. So far, I've only encountered issues with about 4 people who cannot retry a quiz multiple times in the same attempt--but to me that is 4 too many. So annoying!  I hope to hear from you, too, how your method is working!

Agree...steep learning curve! I'm currently my own team--I do both the course design and the LMS admin. Our IT people have no idea what I'm talking about. So thanks for being on my extended team!  If you ever need someone to reach out to...feel free!
