Issue with text variables!!!
Hi,
I have the latest update to Storyline 360 and have found an issue of published files whenever a text variable reference is used.
For some reason, the formatting in a text box is off when I insert the text reference variable into it. I have attached two screenshots of the text box in a published view - not preview mode.
One screenshot has the text box with the first name text variable in it and the second screenshot has the same text box but without the text variable in it.
You will see the alignment is off. This is just one example. Don't be concerned with the grey bars that show up in one of the screenshots (I have been told this a preview mode bug that is still being fixed - I have other threads about this).
I had another slide that had the same text variable and bullet points and in published view, they were all over the place. As soon as I took the text variable away, the bullet points were aligned correctly.
I have used this variable multiple times with no issues at all. Is this a bug for 360?
32 Replies
Hello Cassidy,
I cannot speak for Jacqueline and in taking a look at her case, it looks like she had a couple of alignment issues she worked with our team on.
The original issue published here was corrected in Update 16, so this is quite a while back.
With your permission, I'd like you to share your project file with our support engineers to investigate what's happening. You can share it privately by uploading it here. It will be deleted when troubleshooting is complete.
Hi,
Was a fix for this ever found/implemented, as I am running in to a similar issue.

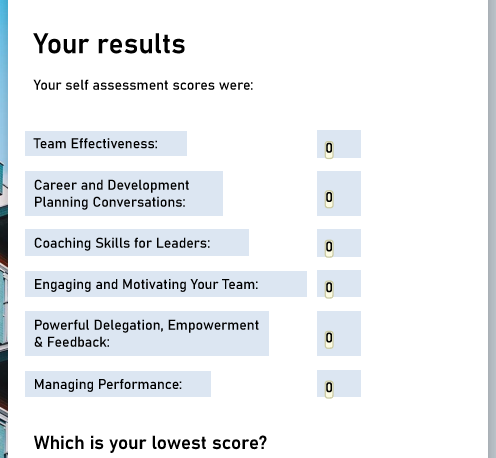

I have aligned text boxes that are the same height, formatted the same and have the same font/size throughout. Text is vertically centred in all text boxes, but as you can see from the attached screenshot, the text boxes on the right (these are the ones with the variable reference), the text isn't aligning vertically in the centre.
It concerns me that this issue was reported 6 years ago and still appears to be present in the latest build of Storyline.
please upload your .story file* with the problem
there are some "normal" problems with dynamic text comparing with static text - but here it looks like a lot more
* only the slide from your screenshot
Thanks for responding Jürgen, here's the .story file.
Thanks.
i don't have the font "Sharp Sans Display No.1"
so I have tested with Roboto -> ok
https://360.articulate.com/review/content/037330f9-ae84-4022-be31-ee4c60743be3/review
with Open Sans -> good
https://360.articulate.com/review/content/8fa2a0d2-3ba9-4c57-9266-d80db61f1cd9/review
and with Bahnschrift -> very bad (similar to Sharp Sans Display No.1)
https://360.articulate.com/review/content/f79774e9-49b8-4e6c-ac0f-4d892e0c58b0/review
the quality of center text in storyline depends on
- the font !!!
- position on the screen
- the scaling of the slides

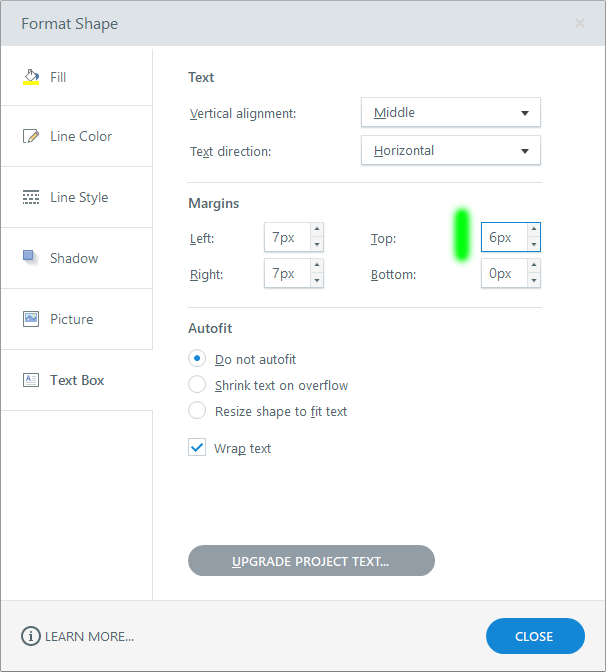

I have tested my bad font "Bahnschrift" and modified the margin for the variable text fields
this looks terrible in authoring
but the result:
https://360.articulate.com/review/content/b2fe327c-5589-4295-9f19-56423283dfd1/review
much better
you could try for "Sharp Sans Display No.1" something similar
