Forum Discussion
Pick One (Drag and Drop) with Multiple Correct Answers
Hello-
I watched Rebecca's video on how to 'fake' a drag and drop using a Pick One interaction. I'm close (I actually have it working on a different slide that has less options to drag/drop).
I'm not sure where my issue is. I get an Invalid Answer pop-up even when I plug in a correct answer.
I've attached the slide in question (Storyline 2 - I copied the slide to a new file and all the formatting changed, sorry!). Possible answers are on the named layer.
22 Replies
Hi Mary,
I think you need to swap out your AND statements in the triggers for the correct answers to OR statements (same as you've done on the incorrect trigger).
Let me know if this works.
Thanks for answering! Unfortunately, no, I still get the Invalid Answer pop-up.
David - do you have any other suggestions? I was hoping I would hear from some of the Heros today...
Hi Mary
When I drop the correct items I get the correct layer, when I drop the incorrect items I get the incorrect layer - I don't see an invalid popup. Can you share a Peek video of what is happening.
I've seen user comments that 'but it can sit in two columns' and they get a little confused about how to proceed. Personally I would duplicate the principles that can be in any of the three columns Sit them on top of each other so that when one is removed the next one displays to be dragged.
Here is a snapshot of the Invalid Answer popup. I select #6, #10, #16 (from left to right).
Hi Mary
I always set the Incorrect trigger to be 'when state of correct trigger is not equal to selected instead of adding in all the opposite conditions. Here is a peek of it working using your #6, #10, #16
Wendy, thanks for answering so quickly! Will you please clarify the triggers? If I change the Incorrect trigger to 'when state of X is not equal to Selected' … what trigger is that replacing?
Change state of Incorrect button to Selected when the user clicks Submit on condition that the 'Correct' button is not equal to Selected. It's the second trigger in the image above that is not highlighted.
Thanks! Ok, I got that part working - 2, 3, and 13 are registering Incorrect. But now 6, 9, 10, 12, 16 are also registering Incorrect.
Hi Mary
here is your original file updated with my trigger - see if it works for all your combinations. In the normal course of using the Pick One with the Correct/Incorrect buttons offstage, the Correct trigger has the AND condition and the Incorrect would have the OR condition. Because you have so many combinations I find it easier to validate the Correct drops and then the incorrect drops have an overarching trigger that if it's not correct then it's incorrect.
Let me know how you go.
When faking a drag and drop in this manner is it possible to constrain the drop target to only one object?
Hi Thomas
not sure I understand your question...One drop target would just be a regular DnD wouldn't it?
I may be experiencing the same issue as Thomas. I have multiple drag objects and target objects. Storyline is allowing me to drop multiple drag objects to a single drop target. I'd like the 'faked' drag and drop to only allow 1 drag target to 1 drop target. I know this is an easy fix if using a traditional drag and drop but using freeform, not so easy. Attached is a screen shot.
Hi Steve!
It sounds like you want to allow only one drag object per target, is that right?

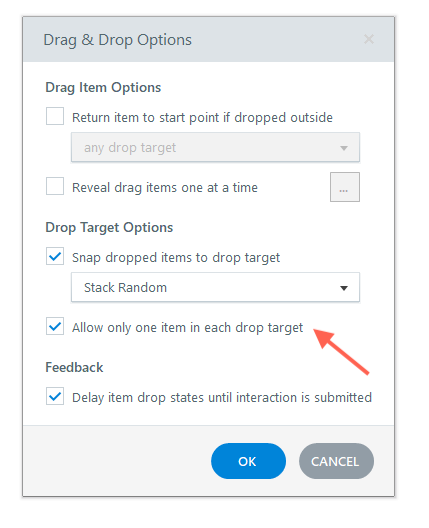

Storyline's Freeform Drag and Drop question type has a setting to "allow only one item in each drop target." Would that setting work for your needs?
Hi Alyssa,
I know this is an older thread, but I think I'm experiencing the same issue as Steve and Thomas.
In my attached example, there are four possible options that can be dragged into only 3 areas, so only 3 options are correct. It doesn't matter which drop area the correct answers are placed in.
This is why I have switched from a regular drag and drop interaction to a pick one freeform interaction. It was necessary to allow multiple correct drop targets for my drag objects.
Using an example on ELH, I was able to create most of my interaction with triggers, however there is one issue. The learner can drag more than one object onto a single drop target, and it doesn't push out the other dragged object.
In this way, the learner is able to drag all answers onto any of the drop targets and receive the "correct" feedback.
I am looking for the functionality that the built in drag-and-drop interaction has, which is only allowing 1 drag item per target.
Any insight or other workarounds for this issue would be appreciated!
A long time ago I know - but has anyone figured out how to do this?
Quoting Shawna
"I am looking for the functionality that the built in drag-and-drop interaction has, which is only allowing 1 drag item per target."
This is an 'issue' when not using the built in drag n drop interaction ...as explained by Shawna.
Hi Shawna! I haven't seen an example of a Pick One slide where one drag item can push another drag item outside the drop target. It's certainly a puzzle, but perhaps someone in the community can help us find the missing piece!
experiencing the same issue as shawna, steve and thomas! please create a dnd template with mutiple correct answer options. that would be most helpful
Hi Kevin,
I'll pass this idea along to our Community team who creates all our amazing templates and articles. We'll keep you posted if we're able to pull an example template together for you.
