Play Audio - All Buttons "Visited"

Hi everyone,

I am having some trouble figuring something out in Storyline 360 and was hoping that, if I bring it to the forum, I might find some support.

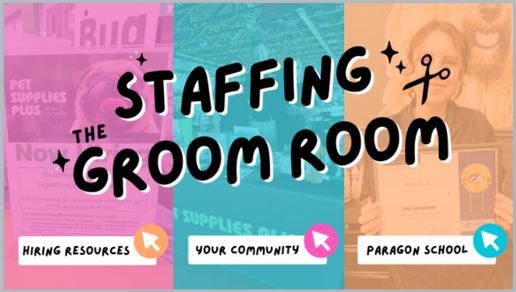

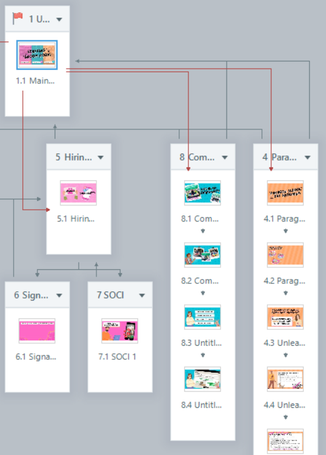

I would like for an audio clip to play once the state of three buttons on a slide are "visited". The buttons are on a main menu, and each takes a user to a different set of slides. The user will then navigate back to the main menu where I want the audio to play-- signaling that the learning is complete. I'll include a photo below.

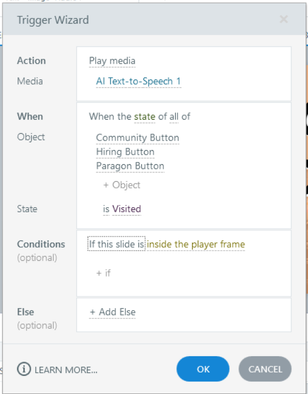

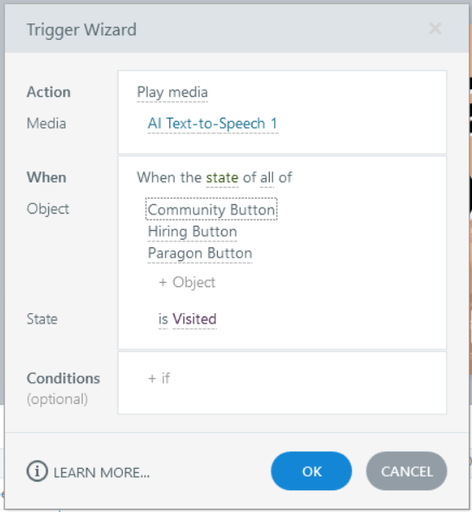

I put in a trigger that asks to play media when the state of all of the buttons is "visited"-- but that doesn't seem to do the trick.

Can anyone help me out? I've included pictures below!



advice
storyline 360
  • WaltHamilton's avatar
    WaltHamilton
    Super Hero
    16 days ago

    Jesse's advice is good, but when you create the trigger to play the audio, use this pattern:

    Play [media] when timeline starts on this slide if [variable1] = True AND [variable2] = True AND [variable3] = True.

    • KaliThorpe's avatar
      KaliThorpe
      Community Member
      4 days ago

      Thank you! Can you help me with how to set up the variables?

  • JesseWu's avatar
    JesseWu
    Community Member
    17 days ago

    Don't have your source file, so I will take some guesses. To me it sounds like:

    When you click the buttons, 2 things happen:

    1. its state becomes visited immediately, not when you come back to 1.1 main menu;
    2. this button brings you to corresponding scenes.

    With that in mind, when you clicked the third button:

    We met the condition to play the TTS audio [on 1.1], but the playing was interrupted, because at this time, you should be on 5.1 / 8.1 / 4.1. I don't think audio on previous page will continue playing.

    Solution? [Edited: See suggest from WaltHamilton above]
