Forum Discussion

yukataniyama's avatar
yukataniyama
Community Member
10 months ago

Insert SSML tags

Hello everyone,

TTS doesn't work correctly when I insesrt SSML tags.
TTS speaks body and the tags too.

I tried neulal voices, both Japnese language and English(US) language.
The both languages speaked tags too.
But TTS works correctly (doesn't speak tags) when I tried another TTS system.

I cannot find what is wrong with my TTS of Storyline regarding this problem.

I would appreciate any advice.
Thank you very much!

  • Hi Everyone!

    I'm happy to share that we just released Storyline 360 (Build 3.84.31647.0) which includes the fix for the bug:

    • Storyline reads the SSML tags in the TTS script if there is a blank space or line break at the beginning/end of the code

    Now all you need to do is update Storyline 360 in your Articulate 360 desktop app to take advantage of the newest bug fixes and features!

    If you run into any issues, please don't hesitate to reach out to our team by submitting a support case.

  • Hi Everyone!

    I'm happy to share that we just released Storyline 360 (Build 3.84.31647.0) which includes the fix for the bug:

    • Storyline reads the SSML tags in the TTS script if there is a blank space or line break at the beginning/end of the code

    Now all you need to do is update Storyline 360 in your Articulate 360 desktop app to take advantage of the newest bug fixes and features!

    If you run into any issues, please don't hesitate to reach out to our team by submitting a support case.

  • I'm having the same problem. In some cases, the tags work as expected, in others the voice reads out the tags. I'm using Ruth (English US) for the voice.

    • StevenBenassi's avatar
      StevenBenassi
      Staff

      Hi Elaine!

      Sorry to hear you've also hit this snag with SSML tags in Storyline!

      Certain tags are only supported when using Standard voices, and Ruth (English USA) is one of the Neural voices. It would be helpful to see a copy of your .story file and which SSML tags were being used. Would you be comfortable sharing a copy here in the discussion or privately through a support case?

      We'll delete it from our system as soon as troubleshooting is complete!

  • Hello Elaine,


    I have reported the problem to the Articulate support team.
    I will contact you when I could solve it.

    Thank you.

    • FookloyYoong-b7's avatar
      FookloyYoong-b7
      Community Member

      I am also facing the same problem. Let me know if you have found the solution. Thanks

      • StevenBenassi's avatar
        StevenBenassi
        Staff

        Hi Fookloy!

        Sorry to hear you've also run into trouble when adding SSML tags to your Storyline course!

        I'd like to take a closer look at your .story file to see why the tags are being read as text and not as proper SSML markups. Would you be willing to share a copy of your project file here in the discussion or in privately by opening a support case?

        We'll delete it as soon as we finish testing!

    • StevenBenassi's avatar
      StevenBenassi
      Staff

      Hi Yuka!

      Sorry to hear you've run into this setback when using SSML tags in Storyline.

      Great move on opening a support case! I see that you connected with my colleague Ian. It looks like Ian replied to your e-mail with some feedback and steps to take.

      We can continue troubleshooting through your case to help keep all information in one spot.

      • yukataniyama's avatar
        yukataniyama
        Community Member

        Hello Steven,

        Thank you for your comment.

        Yes, I've confirmed the email from Ian. I could get success to proceed TTS with SSML tags when I use a test file which sent by Ian.
        But I couldn't get success in my Storyline even if I copied Ian's file log and paseted to my TTS.

        After I will uninstall and re-install Storyline next week, I would feedback to you and Ian.

        Thank you very much!

  • I am having the same issues. I get the "storyline 360 can't convert this text to speech...." whenever I add any tags other than <speak>. It seemed to be working when I added the <speak> tags but as soon as I added <p> or <s> type tags, I get the error message upon clicking update. Any ideas?

  • Hi Jennifer!

    Thanks for reaching out. Sorry to hear you're running into this snag with SSML tags.

    Have you tried replicating this in a brand new .story file? Do you get the same results when trying to convert Text-to-Speech?

    Please upload your .story file to this thread or privately in your support case so we can take a closer look!

    Looking forward to hearing from you! 🎉

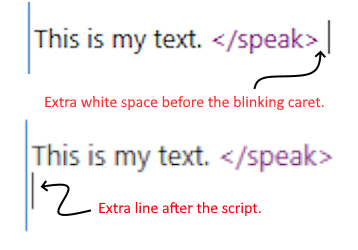

  • Hi everyone, if the TTS is reading out SSML tags, can you try doublechecking to see if the TTS script isn't followed by a trailing white space (you'll know that's the case if you backspace and it doesn't delete the right character). Another way to end up with this behavior is if your TTS script ends with an empty line break, backspacing will also remove this. Here's what those two scenarios look like:

    For Jennifer, if you could share a sample of your script and how you are using the <p> and <s> tags that would be helpful. Are you closing those tags with </p>? For example:

    <speak>
    <p>This is the first paragraph. There should be a pause after this text is spoken.</p>
    <p>This is the second paragraph.</p>
    </speak>
  • I just started at this company and am unsure of my ability to share something i am working on- but I will double check my coding and try again. I am not sure if i used a trailing white space, typically when i use HTML, i didn't think we were supposed to have spaces. Thanks. I will update this after I try that.

    • Mike_Marcos's avatar
      Mike_Marcos
      Staff

      Hi Jennifer, sorry about the confusion there. The original post talks about a different issue where a trailing white space or line break causes Storyline to read the SSML tags instead of applying the effect.

      Your issue is different, since Storyline is showing a warning "storyline 360 can't convert this text to speech..." and not generating the TTS audio at all. This usually means there is a problem with either formatting or using a tag that the voice type doesn't support. i.e. <emphasis> isn't supported by Neural voices, so using a Standard voice should work.

      You mentioned that adding the <p> tag causes the warning to show, and one thing I can think of is if the tag isn't paired with a closing </p> as shown in this example:

      <speak>
      <p>This is the first paragraph. There should be a pause after this text is spoken.</p>
      <p>This is the second paragraph.</p>
      </speak>

      If you can't share the script here, you can share the script or project file with us privately by opening up a support case instead.

      • MaxBooher-0fbd6's avatar
        MaxBooher-0fbd6
        Community Member
        Michael Marcos

        Hi Jennifer, sorry about the confusion there. The original post talks about a different issue where a trailing white space or line break causes Storyline to read the SSML tags instead of applying the effect.

        Your issue is different, since Storyline is showing a warning "storyline 360 can't convert this text to speech..." and not generating the TTS audio at all. This usually means there is a problem with either formatting or using a tag that the voice type doesn't support. i.e. <emphasis> isn't supported by Neural voices, so using a Standard voice should work.

        You mentioned that adding the <p> tag causes the warning to show, and one thing I can think of is if the tag isn't paired with a closing </p> as shown in this example:

        <speak>
        <p>This is the first paragraph. There should be a pause after this text is spoken.</p>
        <p>This is the second paragraph.</p>
        </speak>

        If you can't share the script here, you can share the script or project file with us privately by opening up a support case instead.

        This is a really important fact that should be added to the "troubleshooting tips" on this page:

        https://access.articulate.com/support/article/Storyline-360-SSML-Support



        Would have saved me (and others, clearly) a lot of time and frustration.

  • yukataniyama's avatar
    yukataniyama
    Community Member

    Hello All,

    In my side, The problem resolved with re-installing Articulate 360 and Storyline.
    I am very happy and appreciate all your suport!

    Thank you very mcuh.
    Yuka
