Help please - JavaScript not returning values
I am stuck. I know enough about JavaScript to be dangerous and below is the code that I am using. My Storyline file is attached. I would greatly appreciate someone in the know taking a look and telling me what I did wrong.
Thank you in advance!
var player = GetPlayer();
var LENGTH = player.GetVar(“ConnectorLength”);//user entry - connector length
var HEIGHT = player.GetVar(“Height”);//user entry - their height
var RINGDIST = player.GetVar(“dRingDistance”);
//user entry - distance from D-ring to anchor
var ANCHOR= player.GetVar(“AnchorPoint”);
//user selects location of anchor point
var DECELDIST = player.GetVar(“DecelerationDistance”);
//user entry - deceleration distance (connector stretch when activated)
var SAFETY = player.GetVar(“SafetyFactor”);
//constant value set in Storyline
var RINGSHIFT = 1; //harness slip - constant value used for calculation
var TOTALFALLDIST = player.GetVar(“FallDistance”);//calculated and returned to Storyline
var FREEFALL = player.GetVar(“FreeFall”);
var CONNTYPE = player.GetVar(“ConnectorType”);//connector type
var RINGHEIGHT = HEIGHT-1;//employee height-1 ft
/************************ Start ANCHOR Case Statement ************************/
switch (ANCHOR) {
case 1:
FREEFALL = LENGTH + RINGDIST;//if d-ring is above anchor
break;
case 2:
FREEFALL = LENGTH;//if d-ring is level with anchor
break;
case 3:
FREEFALL = LENGTH - RINGDIST;//if d-ring is below anchor
break;
}
/************************ End ANCHOR Case Statement ************************/
/************************ Start CONNTYPE Case Statement ************************/
switch (CONNTYPE) {
case 1:
break;//do nothing if CONNTYPE = 1 (shock absorbing lanyard)
case 2:
FREEFALL = 0;//if CONNTYPE = 2 (self-retracting lifeline)
break;
}
/************************ End CONNTYPE Case Statement ************************/
TOTALFALLDIST = FREEFALL +DECELDIST + RINGSHIFT + RINGHEIGHT + SAFETY;
//calculate toal fall distance
alert("FallDistance = " +TOTALFALLDIST);
Player.SetVar(FallDistance,TOTALFALLDIST);//Return FallDistance to Storyline
Player.SetVar(FreeFallDistance,FREEFALL);//Return FreeFallDistance to Storyline
- Ron_KatzCommunity Member
Hi Glenda,
I think you can achieve this without bothering with Javascript.

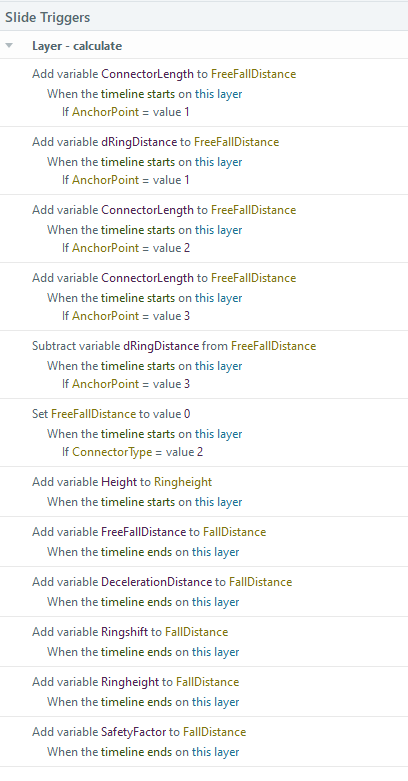

Based on the info you provided these triggers should work.
I attached the updated file.
That was a fun challenge. Thanks for letting me stretch my mind.
- GlendaDeHoff-0cCommunity Member
Thanks, Ron! That is amazingly kind!
- GlendaDeHoff-0cCommunity Member
Thank You! I would never have thought of that!
